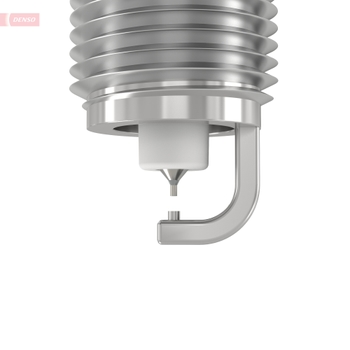

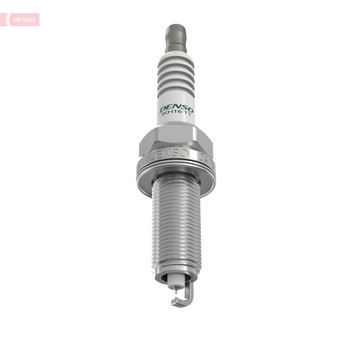

Spark Plug

DENSO part number: IKH16TT

Where to buy?
GTIN/EAN
042511047037, 042511470347, 1004251147034
Packing unit
1
Quantity per packing unit
4
Status
Normal
Replaces DENSO part numbers:

Part specifications

Technical Information
Terminal Shape:Solid. Ground:Platinum Needle
Description
Iridium TT
Spark Plug
With resistor, 1 - Earthed Electrode, Iridium Middle Electrode
Electrode Gap [mm]
1
Thread Size
M14x1.25
Thread Length [mm]
26,5
Diameter [mm]
14
Connector type
Solid SAE
Spanner Size
16 mm
Tightening Torque [Nm]
22
Net Weight [g]
49
Gross Weight [g]
52
Alternative item
IKH16TT

Catalogues and marketing materials

OE numbers

FIAT
96 576 437 80
HYUNDAI
18840-11051
18845-11160
LEXUS
90919-01233
MITSUBISHI
MN119256
NISSAN
22401-5M014
22401-5M015
22401-ZE01B
+2
RENAULT
7701053104

General product information

Known as the ‘heart of the engine’, spark plugs play a key role in the ignition and performance of the entire engine. The well-timed combustion of the fuel-air mixture of gasoline and oxygen is what generates power in gasoline engines. The precise timing of the spark created by the spark plug ignites the fuel, triggering combustion.

To create this spark, a high voltage is passed between the centre electrode and ground electrode of the spark plug. This voltage breaks down the natural insulation between these electrodes and an electrical spark is generated. Although this strong spark only lasts for about 1/1,000 of a second, it has to be precisely and reliably timed to trigger the combustion of the fuel-air mixture.
