VW POLO 1981 — 1994 Hatchback 1.3 Petrol POLO II (86C, 80), 1.3, 55kW(75ps), GK

POLO

1981 — 1994

Hatchback

1.3 Petrol

POLO II (86C, 80), 1.3, 55kW(75ps), GK

Find My Part
Ignition
Spark plugs
DENSO part number: W22TT

Back

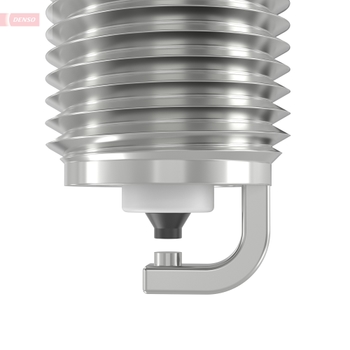

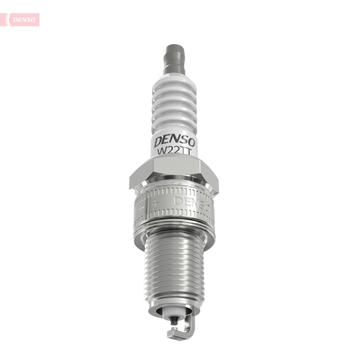

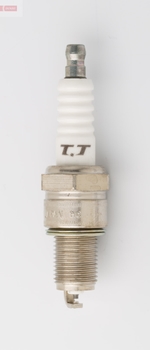

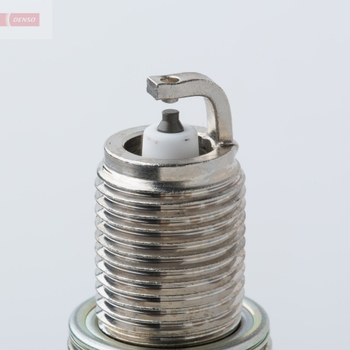

Spark Plug

DENSO part number: W22TT

Where to buy?

Other products fitting this car

GTIN/EAN

042511046214, 042511462144, 1004251146214

Packing unit

Quantity per packing unit

Status

Normal

Replaces DENSO part numbers:

W22ET-L

W22ETR-L

Show all specifications

Application specifications

Construction Year to

1983.07

Engine Code

Quantity required

Engine Code

Quantity required

Part specifications

Technical Information

Terminal Shape:Crimped. Ground:Nickel Needle

Description

Nickel TT

Spark Plug

1 - Earthed Electrode, Nickel Middle Electrode

Electrode Gap [mm]

0,8

Thread Size

M14x1.25

Thread Length [mm]

Diameter [mm]

Connector type

Crimped SAE

Spanner Size

20.6 mm

Tightening Torque [Nm]

Net Weight [g]

Gross Weight [g]

Alternative item

IW22

Catalogues and marketing materials

Browse the Downloads Area section

OE numbers

AUDI

N01781123

N01781239

CITROËN/PEUGEOT

5961 20

5962 3T

5962 3W

DAIHATSU

90048-51083

90048-51084

99226-11236

FIAT

4233922

46481378

5894585

FORD

1 120 835

1 518 878

5 099 742

HITACHI

L44PW

General product information

Known as the ‘heart of the engine’, spark plugs play a key role in the ignition and performance of the entire engine. The well-timed combustion of the fuel-air mixture of gasoline and oxygen is what generates power in gasoline engines. The precise timing of the spark created by the spark plug ignites the fuel, triggering combustion.

To create this spark, a high voltage is passed between the centre electrode and ground electrode of the spark plug. This voltage breaks down the natural insulation between these electrodes and an electrical spark is generated. Although this strong spark only lasts for about 1/1,000 of a second, it has to be precisely and reliably timed to trigger the combustion of the fuel-air mixture.
